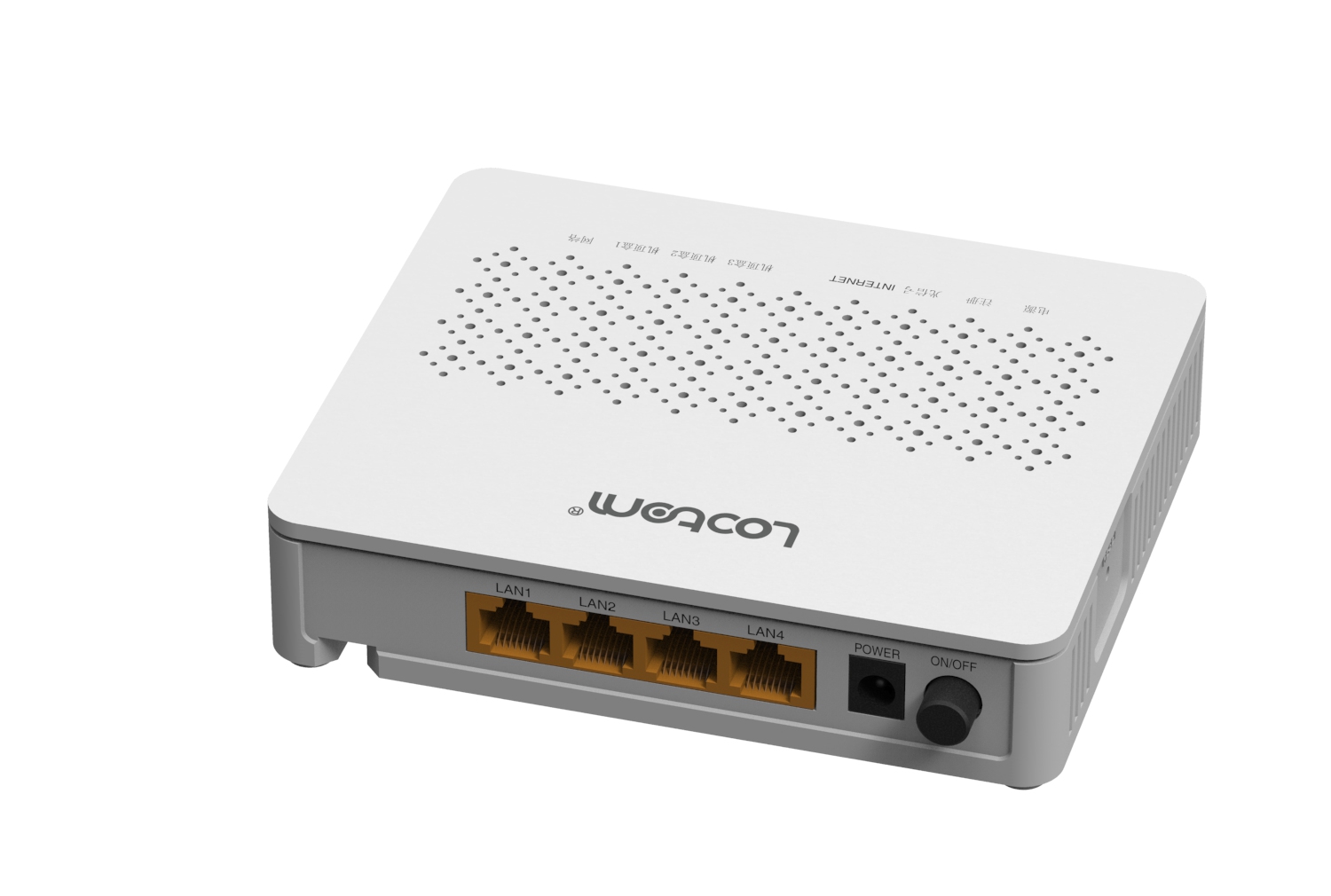

GPON ONU 4FE PORTS GDONU300-4FE
GDONU300-4FE is a XPON ONU device designed based on mixing and multi-service network is also XPON SFU/HGU terminal applied ...
GPON ONU 4FE PORTS GDONU300-4FE
|
Item |
GDONU300-4FE |
|
User Networks ports |
1*10//100/1000M+3*10/100M BASE-T self-adaptive RJ45 interface |
|
PON ports |
GPON: Uplink transmission rate:1.25GBPS Downlink l transmission rate:2.5GBPS EPON: Uplink transmission rate:1.25GBPS Downlink l transmission rate:1.25GBPS Network coverage radius : 20 km Optical interface type：SC/PC or SC/APC Optical receiver with high sensitivity : ≥-28dBm Luminous power：1~4dBm |
|
Dimension |
173 mm(W) x 117 mm(D) x 33 mm(H) Box dimension: 23 mm(W) x 25 mm(D) x 80 mm(H) Weight: 0.5kg |
|
Installation ：plug and play |
|
|
Surroundings parameter |
operating temperature：0℃～50℃ |
|
storage temperature：-40℃～80℃ |
|
|
Power supply |
DC12V/1A adapter type power supplying |
|
Power consumption |
<5W |
|
Body case |
Plastic case |
